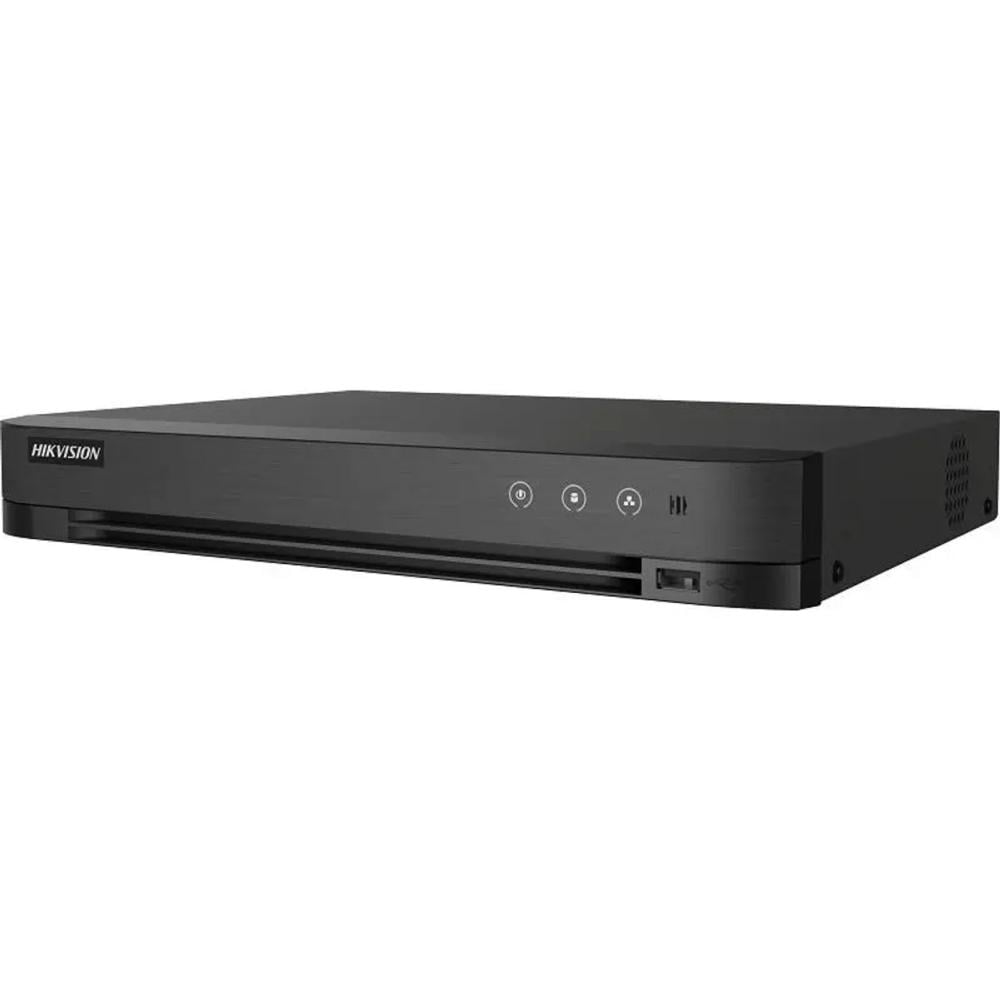

Hikvision iDS‑7204HTHI‑M1/S – 4‑Channel 4K Hybrid DVR with AcuSense AI
A 1U high-tech DVR supporting 4 analog (HD‑TVI/AHD/CVI/CVBS) channels and up to 8 IP camera streams (up to 8 MP). Engineered with H.265 Pro+ compression for optimized storage, featuring AcuSense AI analytics for accurate human/vehicle detection and perimeter protection, minimizing false alarms.
✅ Key Highlights:
- Video Input: 4 analog + up to 8 IP channels (up to 8 MP)
- AI Detection: AcuSense human & vehicle classification, perimeter protection (line crossing/intrusion), face capture, Motion Detection 2.0
- Video Output: 1× HDMI (4K), 1× VGA (1080p), 1× CVBS
- Playback & Recording: Simultaneous 4-channel analog recording & playback
- Compression: H.265 Pro+/Pro, H.265, H.264+
- Recording Rates: 8 MP @15 fps, 5 MP @20 fps, down to 720p
- Network: 1 Gbps Ethernet, Wi‑Fi via USB dongle
- Storage: 1× SATA up to 10 TB
- Auxiliary I/O: RS‑485, USB front & rear
- Audio: RCA input/output, 2-way audio support
- Power & Consumption: 12 V DC, ≤ 10 W (no HDD)
- Dimensions: 315×242×45 mm, <1.8 kg
- Operating Conditions: −10 °C–+55 °C, 10–90 % RH
