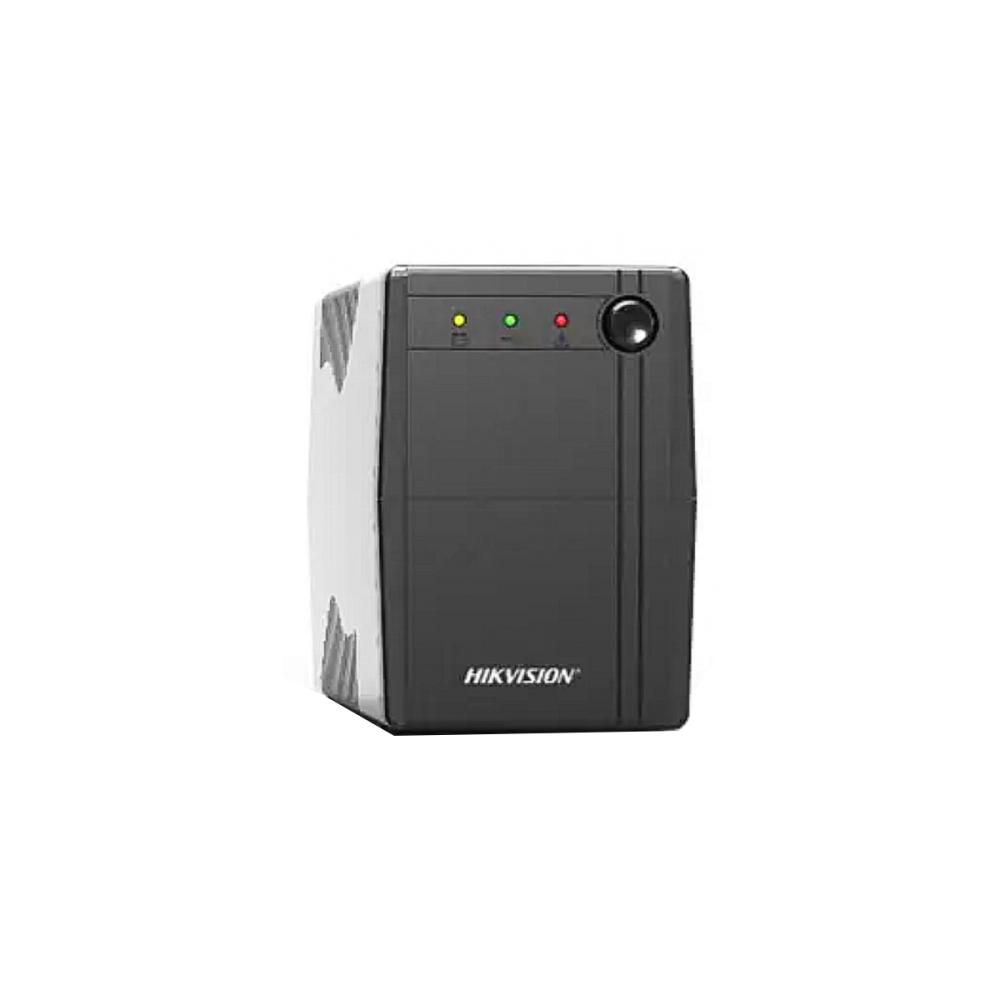

The Hikvision DS-UPS600/EU is a practical 600VA (360W) uninterruptible power supply (UPS) designed to protect electronics from power outages and voltage fluctuations. It comes with a 12V/7Ah rechargeable lead-acid battery, fast transfer time, and comprehensive safety protections. It features two Schuko-type output sockets, multi-color LED indicators, and multiple alarm sounds, making it ideal for surveillance equipment, computers, and networking gear.
Key Specifications :
- Capacity: 600VA / 360W
- Input Voltage: 140–290V AC
- Input Frequency: 50/60Hz (auto-sensing)
- Output Voltage (Battery mode): 210–235V AC
- Output Frequency (Battery mode): 50/60Hz ± 0.5Hz
- Battery Type: 12V / 7Ah rechargeable lead-acid
- Transfer Time: ≤ 10 ms
- Waveform (Battery mode): PWM
- Output Outlets: 2 × Schuko (EU standard)
- Protection: Overload, deep discharge, overcharge, short circuit, surge protection
- LED indicators: Green/Red/Yellow for different statuses
- Auditory alarms for battery, error, or overload situations
- Battery Recharge Time: 4–6 hours to 90% capacity
- Typical backup time: 35min @ 60W, 20min @ 100W, 3min @ 200W load
- Dimensions: 274 × 95 × 139 mm
- Weight: Approx. 4.2 kg
- Operating Temperature: 0–40°C
- Operating Humidity: 30%–90% (non-condensing)
